Total Piping Solutions Steels leading Threaded Flanges manufacturers, founded in 1998. We pride ourselves on being at the forefront of innovation in both product lines and after sales services. This is why we will constantly upgrade our products and services to meet market expectations and demands. We are reputed as an excellent quality Threaded Flanges supplier in the industry. American iron and steel institute (AISI) use three numbers to clarify different types of steel which are 200, 300, 400 and 600 series. Total Piping Solutions Steels also manufacture & specialized into Pipe/Plates such as A106 GR. B Carbon Steel Seamless Pipes, A53 GR. B, API 5L GR. B Seamless Pipes, API 5L Gr B ERW Pipes, A333 GR. 3/6 Pipes & Alloy Steel Pipes ASTM A335 GR P5 | GR P9 | GR P11 | GR P22 | GR P91.
Size: 1/2" NB TO 24" NB. Class : 150#, 300#, 400 #, 600#, 900#, 1500# & 2500# Flanges available with NACE MR 01-75

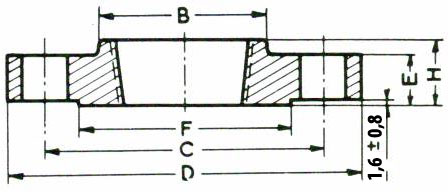

Drilling
Nominal Bore
Dia. (D)
Thick. (E)
Dia. (F)
Dia. (B)
Height1 (H)
Nbr
Holes
Dia. (C)
1/2"
90
9.6
35.05
30
14
4
15.87
60.3
3/4"
100
11.2
42.92
38
14
4
15.87
69.9
1"
110
12.7
50.80
49
16
4
15.87
79.4
1 1/4"
115
14.3
63.50
59
19
4
15.87
88.9
1 1/2"
125
15.9
73.15
65
21
4
15.87
98.4
2"
150
17.5
91.94
78
24
4
19.05
120.7
2 1/2"
180
20.7
104.65
90
27
4
19.05
139.7
3"
190
22.3
127.00
108
29
4
19.05
152.4
3 1/2"
215
22.3
139.70
122
30
8
19.05
177.8
4"
230
22.3
157.22
135
32
8
19.05
190.5
5"
255
22.3
185.67
164
35
8
22.22
215.9
6"
280
23.9
215.90
192
38
8
22.22
241.3
8"
345
27.0
269.75
246
43
8
22.22
298.5
10"
405
28.6
323.85
305
48
12
25.40
362.0
12"
485
30.2
381.00
365
54
12
25.40
431.8
14"
535
33.4
412.75
400
56
12
28.57
476.3
16"
595
35.0
469.90
457
62
16
28.57
539.8
18"
635
38.1
533.40
505
67
16
31.75
577.9
20"
700
41.3
584.20
559
71
20
31.75
635.0
24"
815
46.1
692.15
663
81
20
34.92
749.3
1,6mm raised face not included in the E & H dimensions
The dimensions are in millimeters Source : ASME B16.5 - 2007
Flanges of welding neck, socket welding, threaded, blind, slip on, lap joint are in accordance with ANSI B 16.5 from 1/2" to 24" and classes 150 to 2500 (complete range).
Flanges from 26" to 48" and classes 150 to 900 lbs are in accordance with MSS SP 44 standard.
Flanges with long welding neck are from classes 150 to 2500 lbs and sizes from 1/2" to 24".
Orifice flanges from 1" to 24" and from 300 to 2500 lbs are in accordance with ANSI B 16.36.
Blind, slip on, welding neck flanges are from 6 Bar to 40 Bar in accordance with DIN.
Flanges from 1/2" to 24" and up to 450 lbs are in accordance with BS10 Table D & Table E, BS Table F & Table H, BS Table J & Table K.
Flanges from 2kg to 210 kg are in accordance with JIS.
Flanges according to API 605/ASME B16.47.
Depending on special purposes, flanges can be manufactured in different shapes and sizes
Threaded Flanges packing will be according to international standard in bundles strapped by strips then into containers to avoid any damage.
